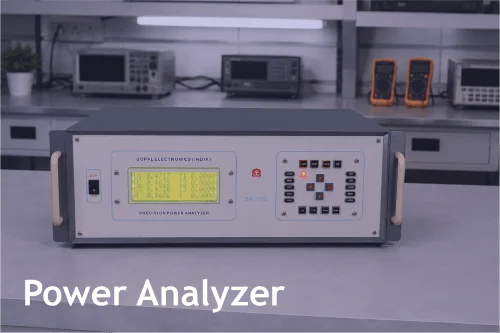

Three Phase Power Analyzer Model : PA700TFT

Model: PA700TFT

Three Phase Power Analyzer Model : PA700TFT
Three Phase Power Analyzer PA700TFT is multi-range power Analyzer with basic 0.05% R+R accuracy. 8 range of voltage, 8 range of current and total 64 range of power and power factor gives more accurate result at low power factor. It has waveform mode to check the waveform of voltage and current. As well it has B/H curve mode where user can check live b/h curve of the transformer under test. The gap less four-quadrant power measurement technique gives better accuracy at distorted waveforms or AC drive (VFD) operated power supply.

3 Phase Power Analyzer Model : LCD780

Model: LCD780

3 Phase Power Analyzer Model : LCD780
3 Phase Power Analyzer LCD780 is multi-range power Analyzer with basic 0.07% R+R accuracy. 8 range of voltage, 8 range of current and total 64 range of power and power factor gives more accurate result. The gap less four-quadrant power measurement technique gives better accuracy at distorted waveforms or AC drive (VFD) operated power supply.

Three Phase Power Analyzer Model : DXL780

Model: DXL780

Three Phase Power Analyzer Model : DXL780
Three Phase Power Analyzer DXL780 is suitable for transformer & motor testing. It has 8 range of voltage & 8 range of current which is Auto or manually selectable. User interface by 22key become more easy and understandable. And the most efficient programming technique used to implement FIR & IIR filter that gives steady result and option of selectable display update rate.

Digital Iron Loss Tester Model : DW22

Model: DW22

Digital Iron Loss Tester Model : DW22
Digital Iron Loss Tester Dw22 is single sheet iron loss tester which is useful to evaluate iron loss of electrical steel sheet CRGO, CRNO material and suitable for testing EI lamination, Motor Stamping, Fan motor stamping etc.

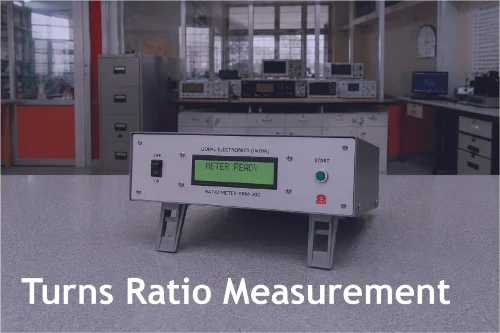

Turns Ratio Meter

Model: TRM200

Turns Ratio Meter
Turns Ratio Meter Model TRM200 is widely used in transformer industry in manufacturing and repairing service. It directly display the ratio of LT turns & HT turns. It is capable to measure turns ratio till 1:1200. Turns ratio meter is designed to be a rugged and reliable. It is equipped with stable 250mA source. The design is based upon in-house invented & patented technology. TRM200 has also option for 1amp current source on demand.

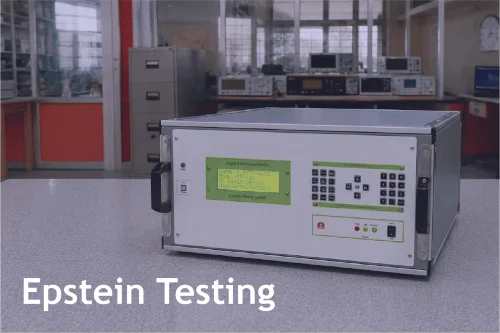

Digital Epstein Tester Model : EP400

Model: EP400

Digital Epstein Tester Model : EP400
Digital Epstein Tester EP-400 is designed to measure AC magnetic properties of flat rolled magnetic materials at high frequency by using Watt-meter, Ammeter, Voltmeter and Source. Epstein bridge test method is a fundamental method for evaluating the magnetic performance of flat-rolled magnetic materials in either sheared or stress relief annealed condition. This test method is suitable for design, specification acceptance, service evaluation, and research and development.

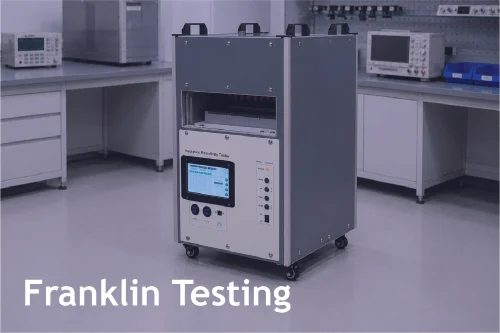

Franklin Tester Model : FT2

Model: FT2

Franklin Tester Model : FT2
Gopal make Franklin Tester Model FT-2 is designed as per IS:649 & ASTM:717 Standard to measure insulation resistivity of electrical steel sheet. It requires precision & noise free DC regulated power supply and equally distributed pressure on electrode. Franklin Tester FT-2 regulated power supply provides 0.5000V with 0.1% accuracy over load and no load. Most of national and international standard has specified only 0.5%, means FT-2 is equipped with five time better accuracy than required.

Franklin Tester

Model: FT1

Franklin Tester
Franklin tester measures the surface insulation resistivity of single strip of flat‐rolled electrical steel under predetermined conditions of voltage, pressure, and temperature according to ASTM A717 & IS649

Single Sheet Tester SST 500X500

Model: SST500X500

Single Sheet Tester SST 500X500

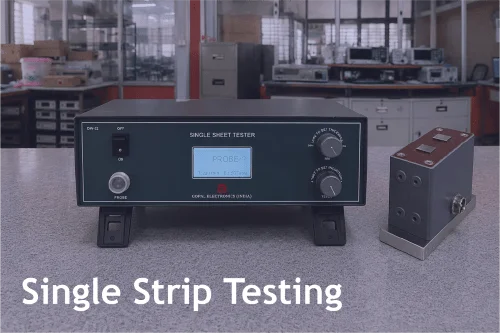

Iron Loss Tester

Model: DW-21

Iron Loss Tester
Iron Loss Tester Model: DW‐21 is very accurate single sheet iron loss tester. You can evaluate very accurate watt loss of any electrical steel sheet by feeding it's accurate weight or thickness in the instrument. You can test the sample from 0.2 Tesla to 1.8 Tesla at frequency range from 35Hz to 125Hz.

Watt Loss Tester

Model: RK-45

Watt Loss Tester
Digital watt loss tester Model RK45 is very useful instrument for comparing different motor stampings grade. It is very much important to inspect the grade and watt losses of motor stamping for high quality and energy efficient motor development.

Epstein Tester

Model: EP-350

Epstein Tester
Epstein Tester Model EP350 is capable to measure AC magnetic properties like watt/kg, Ampere turns per meter, permeability etc. of flat rolled magnetic materials. EP30 comply IS649 and ASTM 343 standards.

Three Phase Power Analyzer

Model: PA-600

Three Phase Power Analyzer
Low power factor measurement plays vital role in transformer testing, Power Analyzer PA600 gives accurate measurement at low power factor.

Motor Stack Tester

Model: ST-1000

Motor Stack Tester
Motor Stack Tester Model ST-1000 measures basic magnetic properties of Motor stack (ring, toroid or stamping), and It can measure the Iron loss (Watt/kg), magnetizing force and permeability.
